Full Automatic 10000BPH 500ml Mineral Water Filling Production Line

اطلاعات پایه

محل منبع:	چین
نام تجاری:	sunswell
گواهی:	ce
شماره مدل:	ssw

مقدار حداقل تعداد سفارش:	1SET
قیمت:	12000-120000
زمان تحویل:	90 روز
شرایط پرداخت:	L/C، D/A، D/P، T/T

بهترین قیمت اکنون تماس بگیرید

نام ماشین آلات:	بطری آب معدنی بطری پر کردن آب بندی مک	برنامه:	بطری و بسته بندی آب
ساخت ماشین:	Rinser, Filler, Capper 3 in 1 Monoblock	مواد:	فولاد ضد زنگ 304، 316 لیتر موجود است
بسته بندی محصول:	بطری پلاستیکی، بطری حیوان خانگی، بطری آلومینیومی، شیشه	تابع:	Rinser Filler Capper Rinsing Filling Capper
حجم بطری:	200-2200 میلی لیتر	ظرفیت:	5000-40000 بطری در ساعت
دقت پر کردن:	0.5٪

Advanced Automatic Water Bottling Filling Line for Bottles

Description:
3 in 1 monoblock bottle water making machine can be applied to the production of mineral water, purified water, flavor water and low alcoholic drinks, etc.The water filler machine can be used for different water filling line.

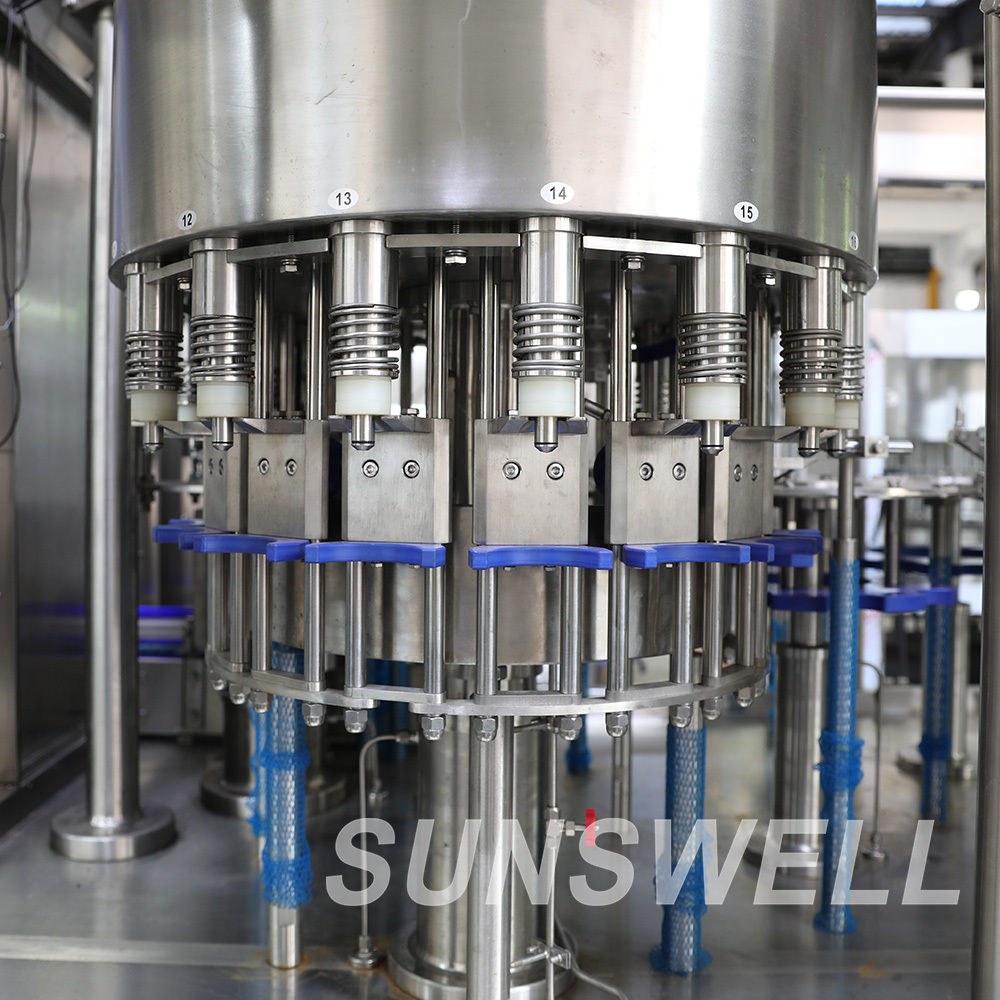

The whole machine is mainly composed of rinser, filler and capper.

Full Automatic 10000BPH 500ml Mineral Water Filling Production Line 0

Full Automatic 10000BPH 500ml Mineral Water Filling Production Line 1

Model	CGF12125	CGF18186	CGF24248	CGF323210	CGF404012	CGF505012
washing, filling and capping heads	12-12-5	18-18-6	24-24-8	32-32-10	40-40-12	50-50-12
Production capacity(600ml) (B/H)	2000-4000	5000-7000	8000-12000	12000-15000	16000-20000	20000-24000
Motor power(kw)	2.2kw	2.2kw	3kw	5.5kw	7.5kw	11kw
Weight (kg)	2500	3500	4500

Main features:

Full Automatic 10000BPH 500ml Mineral Water Filling Production Line 2

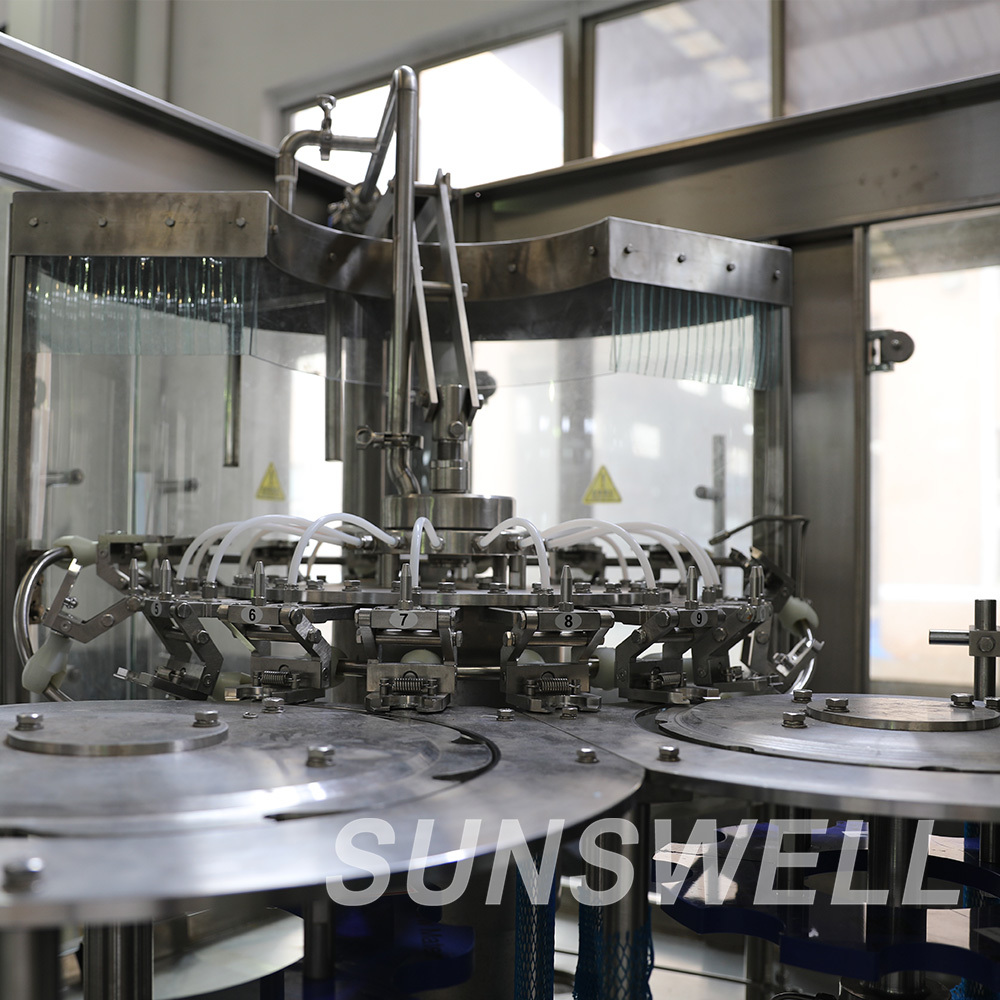

The rotary wheel is a fully sus304 stainless steel welded structure.
The machine applies unique overturning bottle clamp, which is an innovation of our company.This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp.Made of sus304 stainless steel, this bottle clamp is hygienic and durable.
The high efficiency atomizing spay nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and also saves rinsing water.
All sliding bushes of lifting device use igus (germany) anti-corrosion maintenance free bearing.

The rinser is driven by driving system positioned inside machine frame via gear transmission.

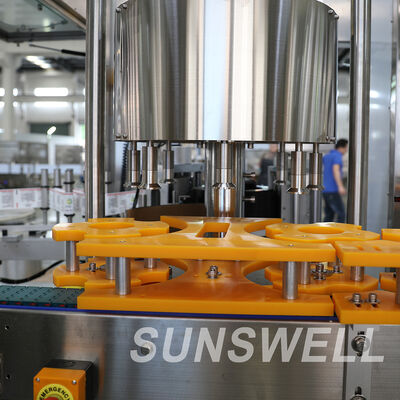

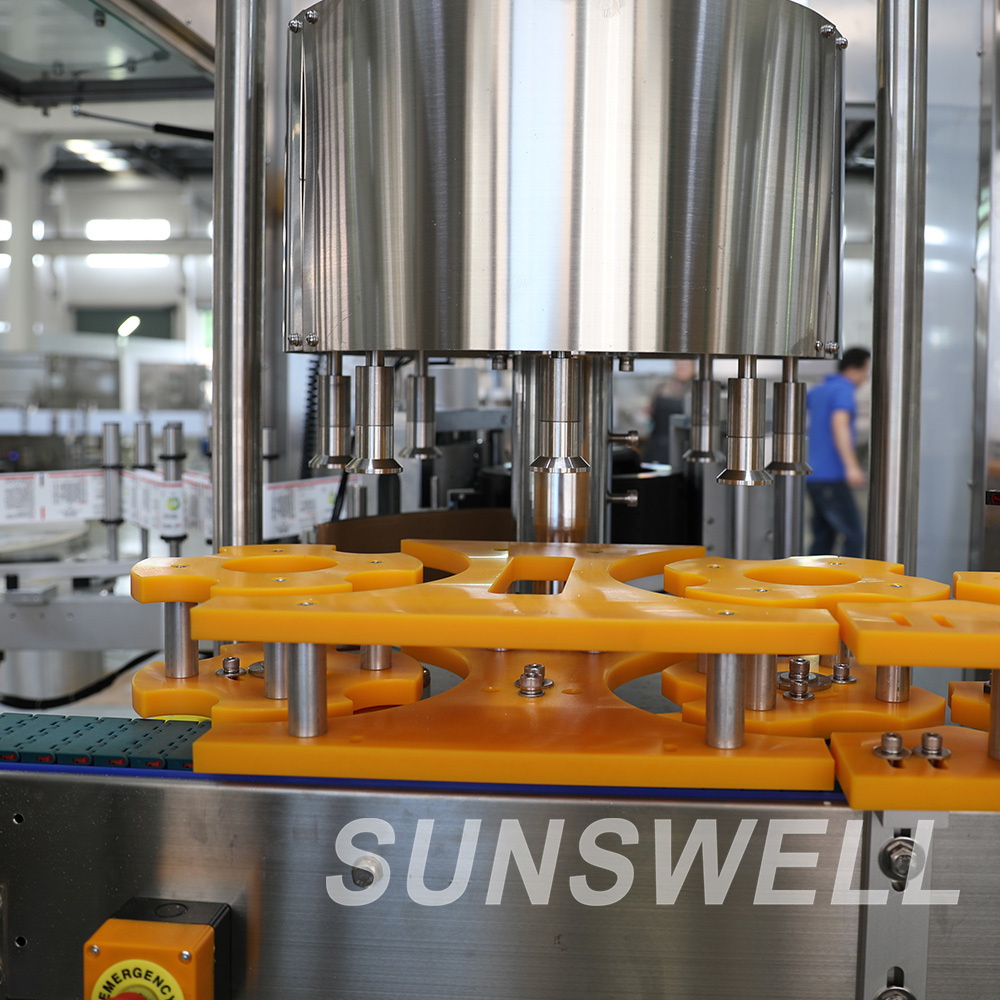

Transfer starwheel
Made of stainless steel of superior quality.
Equipped with bottle jam protection device.

The rinser is driven by driving system positioned inside machine frame via gear transmission.

Transfer starwheel
Made of stainless steel of superior quality.
Equipped with bottle jam protection device.

The rinser is driven by driving system positioned inside machine frame via gear transmission.

Transfer starwheel
Made of stainless steel of superior quality.
Equipped with bottle jam protection device.

The rinser is driven by driving system positioned inside machine frame via gear transmission.

Transfer starwheel
Made of stainless steel of superior quality.
Equipped with bottle jam protection device.

FAQ:
Q1: which city are you in? how can I get to your factory? Are you a trading company or factory?
A1: We are in Zhangjiagang city, two hours driving from Shanghai. We are factory. Manufacturing mainly beverage filling and packagingmachines. We offer turnkey solutions with more than 10 years experience.

Q2: Why is your prices higher than others?
A2: We offer high-end machines in our business. Welcome to our factory to have a visit. And you will see the difference.

Q3: What is your delivery time?
A3: Normally 30-60 working days depends one machines, water machines are faster, carbonated drink machines are slower.

Q4: How to install my machines when it arrives? How much the cost?
A4: We will send our engineers to your factory to install the machines and train your staff how to operate the machines If needed. Or you can arrange engineers to study in our factory.
You are responsible for air tickets, accommodation and our engineer wage USD100/day/person.

Q5: How long time for installation?
A5: Subject to machines and the situation in your factory. If everything is ready, it will take about 10 days to 25 days.

Q6: How about the spare parts?
A6: We will send one year enough easy broken spare parts together with the machines for free, we suggest you buy more units to save international courier such as DHL, it is really costly.

Q7: What is your guarantee?
A7: We have one year guarantee and life-long technical support. Our service also including machine maintence.

Q8: What is your payment term?
A8: 30%T/T in advance as down payment, rest should be paid before shipping. L/C is supported also.

Any more questions, pls feel free to contact me !
